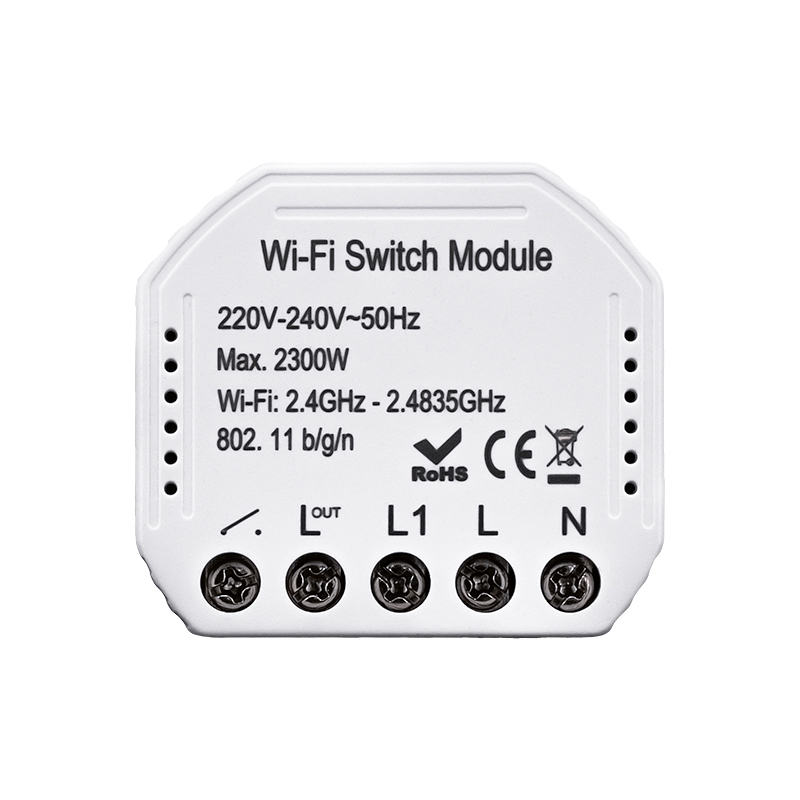

1 Gang Wi-Fi Switch Module

This 1 gang Smart Switch Module enables you to wireless control on/off by Mobile Phone APP. Support Alexa and Google Home, Echo Dot, and IFTTT. It can be used in lighting and household appliances, such as refrigerators, water heaters, TV, air conditioner, electric fan, etc. Far distance Control and timing set function.The switch module WiFi will bring you a brand new experience.

Different Types Of 1 Gang Wi-Fi Switch Module

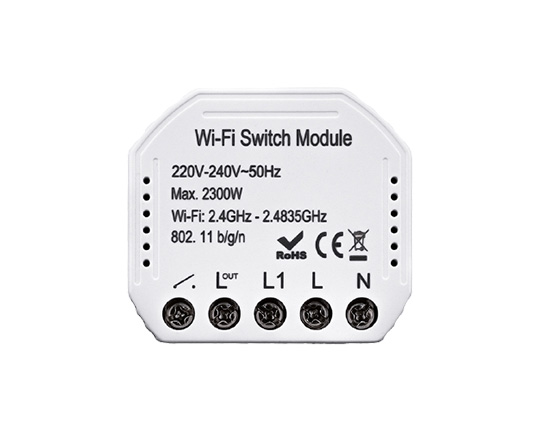

QS-WIFI-S03

  • Dry Contact WIFI Switch Module

  • Voltage 100-250V AC

  • Max. load 2300W/250W for LED

  • Dims (WxDxH) 51x47x17 mm

QS-WIFI-S05

  • Small WIFI Switch Module

  • Voltage 100-250V AC

  • Max. load 2300W/250W for LED

  • Dims (WxDxH) 46x46x18 mm

QS-WIFI-S06-16A

  • WIFI MINI Switch Module

  • Voltage 100-250V AC

  • Max. load: 16A, 3680W/300W for LED

  • Dims (WxDxH) 39X39X15 mm

QS-WIFI-S08-16A

  • WIFI Push Button&Normal Switch Module

  • Voltage 100-250V AC

  • Max. load: 16A, 3680W/300W for LED

  • Dims (WxDxH) 39X39X15 mm

  • With reset key

Parameters Of 1 Gang Wi-Fi Switch Module

Operation frequency2.4GHz - 2.4835GHz WIFI
WiFiWiFi 802.11 b/g/n
Operation temp.-10ºC - +40ºC
Case temp. Tc+80ºC (Max.)
Operation range≤ 200 m
IP ratingIP20
CertificatesCE ROHS
Warranty2 years


Features Of 1 Gang Wi-Fi Switch Module

Protocol: WIFI / Bluetooth / Zigbee.
Easy to install behind the existing switch, keep function of manual switches.
App control is synchronized with the manual switch.
Voice control compatible with Google home and Amazon Alex etc.
Schedule,group, scene, automation functions organizable with other smart home devices,easily achieve home automation.
Accept customer customization for logo, color box. etc.

Quality Standard Of 1 Gang Wi-Fi Switch Module

EMC Standard (EMC)

EN 300 328 V2.1.1 (2016-11),

EN 301489-1 V2.1.1 (2017-02),

EN 301489-17 V3.1.1 (2017-02),

EN 62311: 2008,

EN 61000-6-1:2007,

EN 61000-6-3:2007+A1:2011.

Safety Standard (LVD)

IEC 60669-2-1:2002 / AMD1:2008 / AMD2:2015,

IEC 60669-1:1998 / AMD1:1999 / AMD2:2006,

EN 60669-2-1: 2004+A1: 2009+ A2: 2010,

EN 60669-1:2018.

RoHS Standard (RoHS)

2011/65/EU, (EU) 2015/863.

Radio Equipment (RED)

ETSI EN 300 328 V2.1.1 (2016-11).
