WiFi Curtain Switch Module with RF

This 2 gangs Smart Curtain Switch Module is combined with 2 channels smart switch module and 2 gangs smart curtain switch module, working by WiFi and RF tech both. Thanks to its advance design, this curtain switch module has stronger functions than other modules. It can not only switch ON/OFF of curtain / roller shutter / blind, but also lighting and household appliances like refrigerators, water heaters, TV, air conditioner, electric fan, etc. Users can smart control your home by Mobile Phone APP, RF remote or smart speaker like Alexa and Google Home.

Different Types Of WiFi Curtain Switch Module with RF

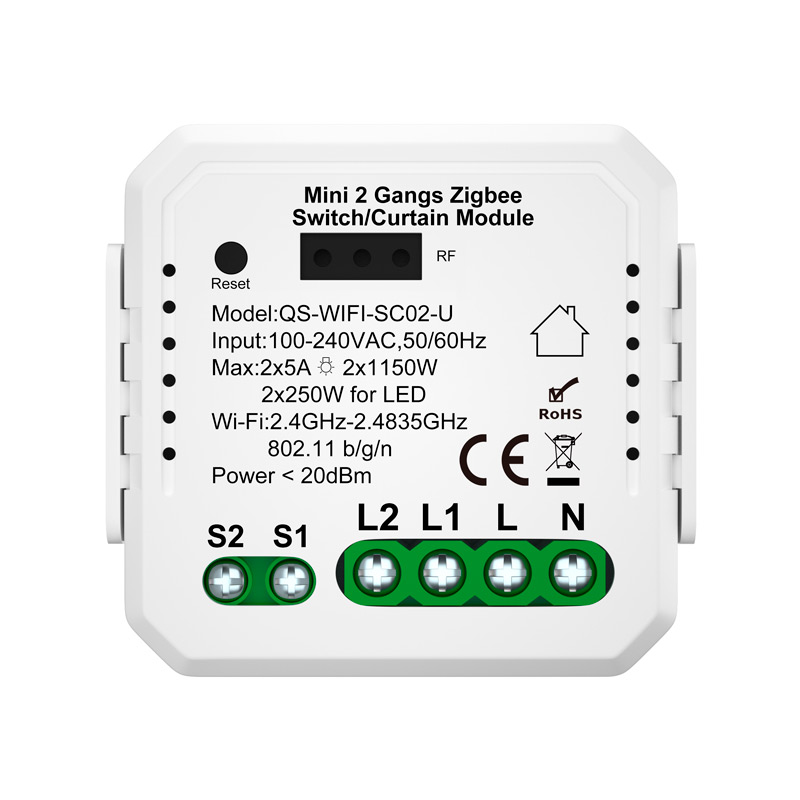

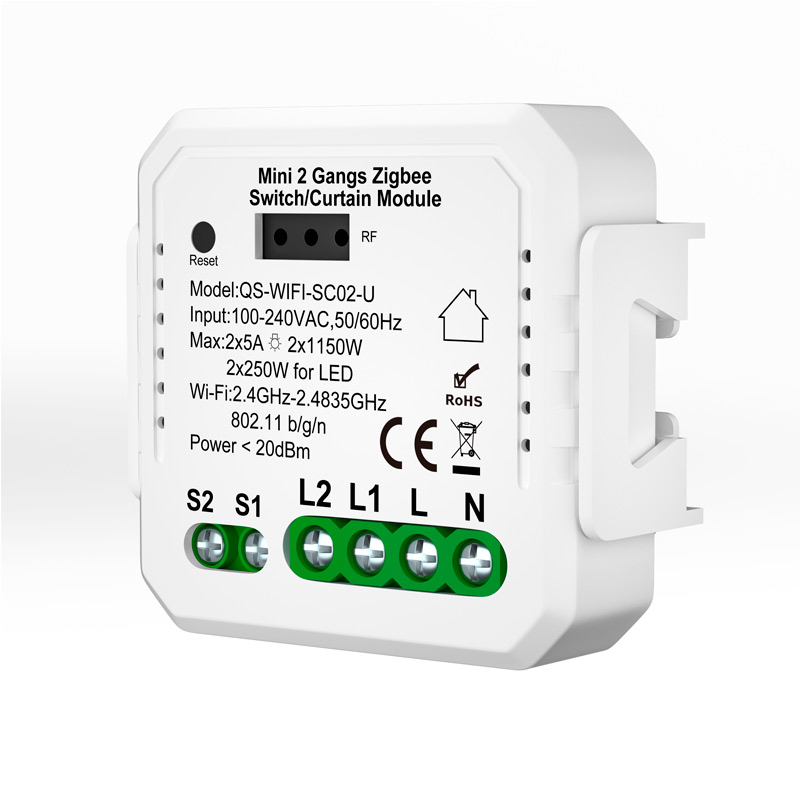

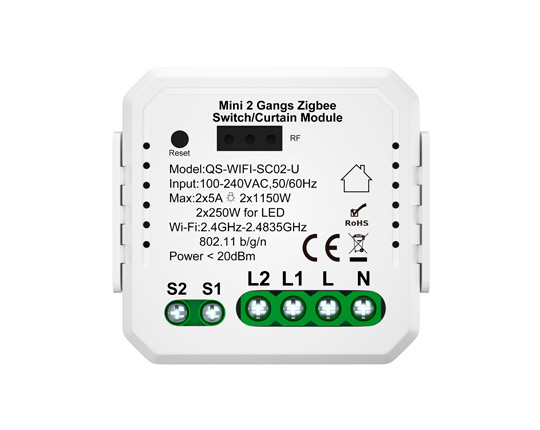

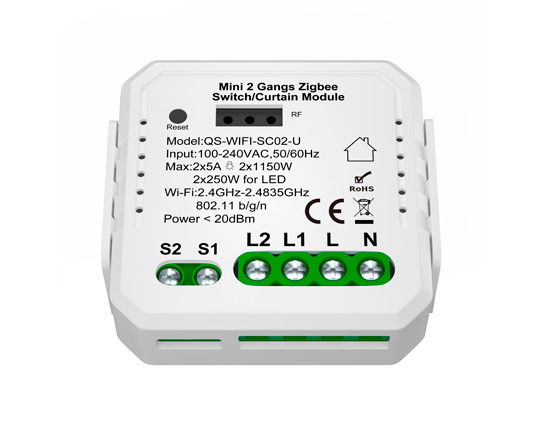

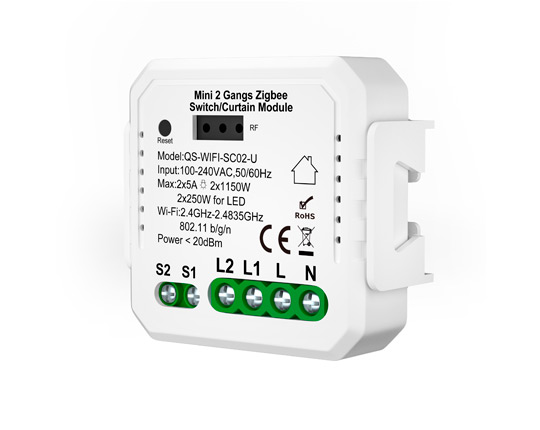

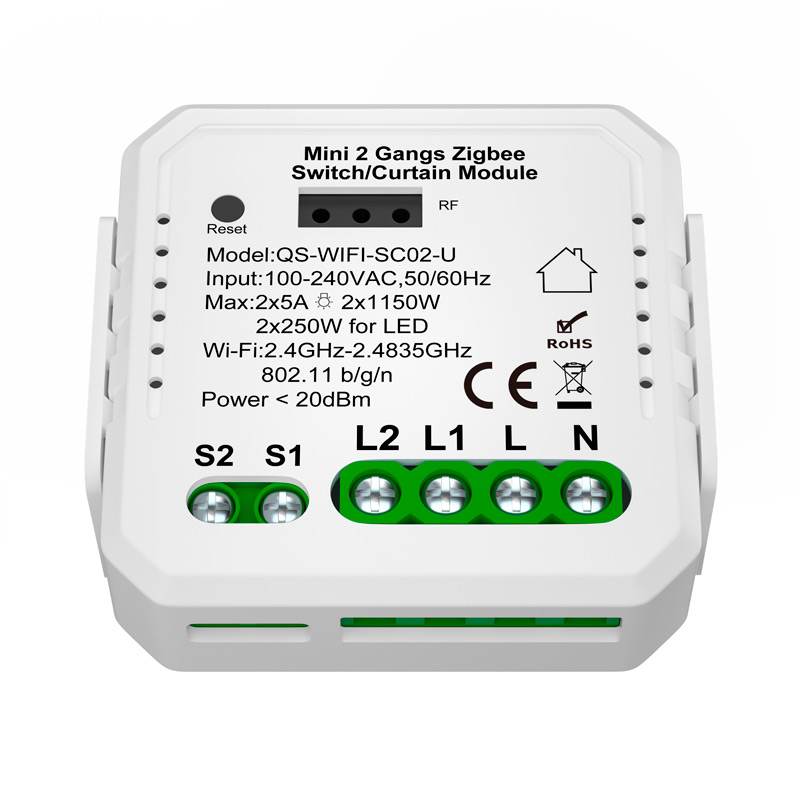

QS-WIFI-SC02-U

  • WiFi Curtain Switch Module with RF

  • Input Voltage 100-240V AC

  • Max Load 2x250W for LED/2x600W

  • Dims (WxDxH) 40x40x18 mm

Parameters Of WiFi Curtain Switch Module with RF


Protocol

WiFi + RF

WiFi

WiFi 802.11 b/g/n

Operation frequency

2.4GHz - 2.4835GHz WIFI

Operation temp.

-10ºC - +40ºC

Case temp. Tc

+80ºC (Max.)

Operation range

≤ 200 m

IP rating

IP20

Certificates

CE ROHS

Warranty

2 years


Features Of WiFi Curtain Switch Module with RF

2 gangs 2 in 1 curtain switch module.
WiFi and RF wireless control.
Suitable for normal switches and push button switch.
Easy to install behind the existing switch, keep function of manual switches.
App control is synchronized with the manual switch.
Voice control compatible with Google home and Amazon Alex etc.
Schedule,group, scene, automation functions organizable with other smart home devices, easily achieve home automation.
Accept customer customization for logo, color box. etc.

Quality Standard Of WiFi Curtain Switch Module with RF

EMC Standard (EMC)

ETSI EN 300 328 V2.2.2 (2019-07)

ETSI EN 301 489-1 V2.2.3 (2019-11)

ETSI EN 301 489-17 V3.2.4 (2020-09)

EN IEC 62311:2020

EN 62479:2010

EN IEC 55015:2019+A11:2020

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

EN 61547:2009

Safety Standard (LVD)

IEC 60669-2-1:2002/AMD1:2008/AMD2:2015,

IEC 60669-1:1998/AMD1:1999/AMD2:2006,

EN 60669-2-1:2004+A1: 2009+A2:2010,

EN 60669-1:2018

Radio Equipment (RED)

ETSI EN 300 328 V2.1.1 (2016-11)

RoHS Standard (RoHS)

2011/65/EU, (EU) 2015/863
