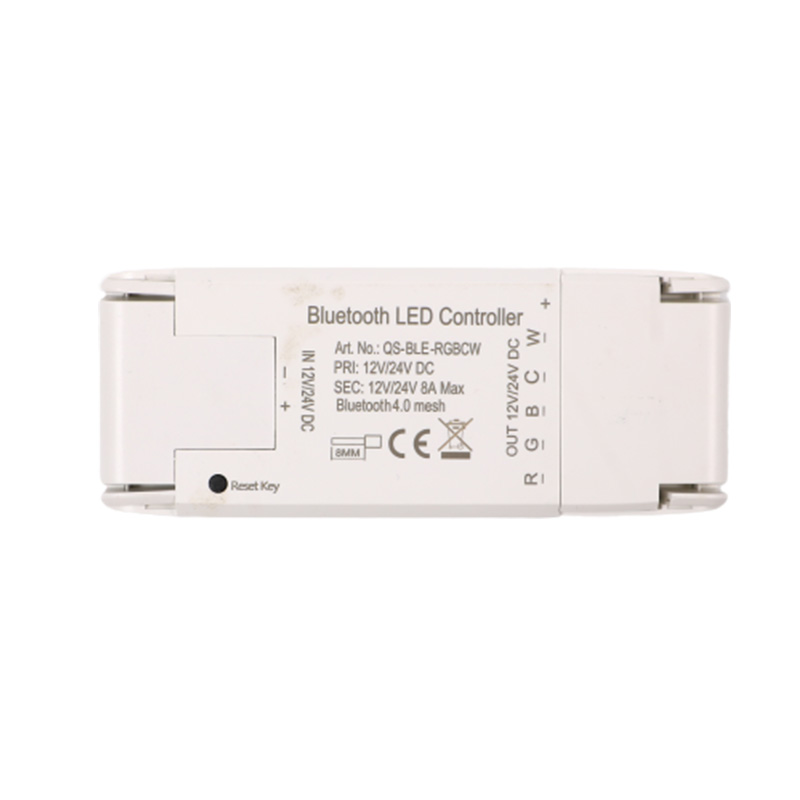

Bluetooth RGBCW LED Strip Controller

The Bluetooth controller for LED strip is equipped with newest bluetooth technology. Bluetooth is a wireless technology standard. The band is around 2.4GHz. It has a wide range of channel advantages and been widely used in smart homes, sports metering, mobile phone peripherals etc.

Parameters Of Bluetooth RGBCW LED Strip Controller

ProtocolBluetooth 4.0 Wireless Mesh
Operation temp.-20ºC - +50ºC
Case temp. Tc+80ºC (Max.)
Operation range≤ 10 m
IP ratingIP20
CertificatesCE ROHS
Warranty3 years


Features Of Bluetooth RGBCW LED Strip Controller

Compatible with most Bluetooth 4.0 mesh gateway.
With BLE Mesh Gateway, the distance between Phone and Device can be more than 10m.
With no BLE mesh gateway, the distance between Phone and Device is 10m.
Control the ON/OFF, brightness, color changing of all types of LED strip lights.
Voice control compatible with Google home and Amazon Alex etc.
Schedule,group, scene, automation functions available,easily achieve home automation.
Accept customer customization for logo, color box. etc.

Quality Standard Of Bluetooth RGBCW LED Strip Controller

EMC Standard (EMC)

ETSI EN 300 328 V2.1.1 (2016-11) ,

ETSI EN 301 489-1 V2.1.1 (2017-02)

ETSI EN 301 489-17 V3.1.1 (2017-02) ,

EN 62479:2010, EN 61547:2009,

EN 55015:2013+A1:2015,

EN 61000-3-2:2014 , EN 61000-3-3:2013

EN IEC 61058-1:2018; EN 61058-1-2:2016

Safety Standard (LVD)

IEC 60669-2-1:2002 / AMD1:2008 / AMD2:2015,

IEC 60669-1:1998 / AMD1:1999 / AMD2:2006,

EN 60669-2-1: 2004+A1: 2009+A2: 2010,

EN 60669-1:2018

Radio Equipment (RED)

ETSI EN 300 328 V2.1.1 (2016-11)

RoHS Standard (RoHS)

2011/65/EU, (EU) 2015/863


Related Documents Of Bluetooth RGBCW LED Strip Controller
