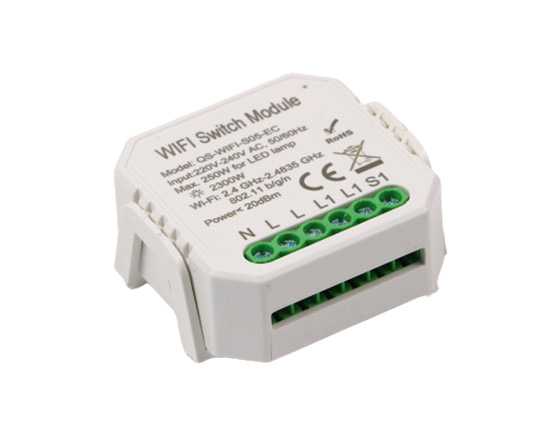

Wi-Fi Switch Module With Energy Monitor

This is a 1 gang Smart Switch Module with energy monitor function. Enable you to wireless control on/off of electronic devices or LED lights by Mobile Phone or smart speaker Alexa or Google Home. At the meantime, monitor the energy consumption. This energy monitoring switch module terminal reserves the access of manual override function for the end-user to switch on/off.

Different Types Of Wi-Fi Switch Module With Energy Monitor


  • Energy Monitoring WIFI Switch Module

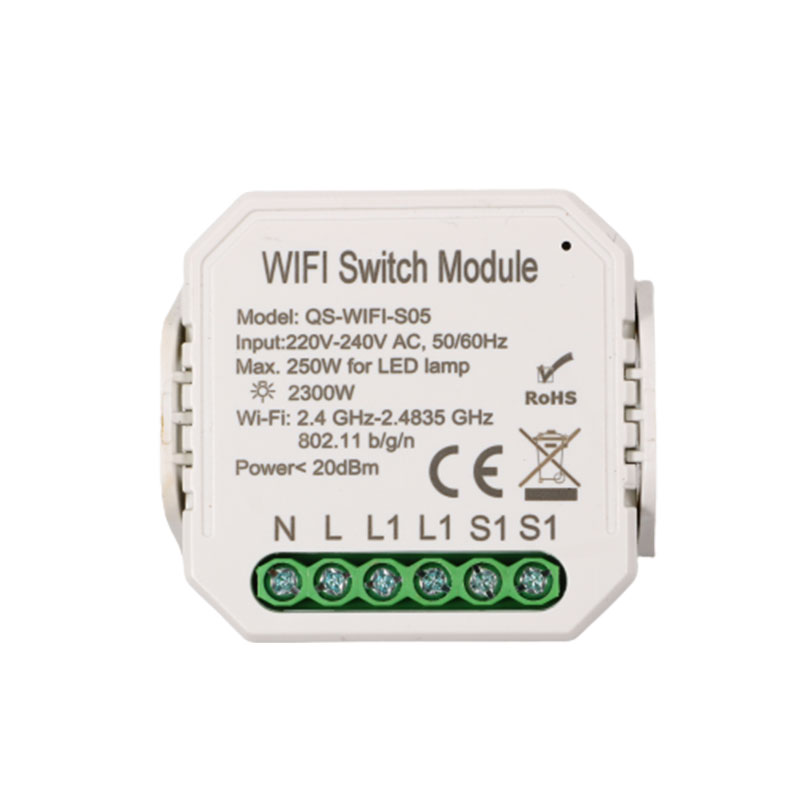

  • QS-WIFI-S05-EC

  • Voltage 220-240VAC

  • Max. load: 2300W/250W for LED

  • Dims (WxDxH): 46x46x18mm

  • With reset key


Parameters Of Wi-Fi Switch Module With Energy Monitor

Operation frequency2.4GHz - 2.4835GHz WIFI
WiFiWiFi 802.11 b/g/n
Operation temp.-10ºC - +40ºC
Case temp. Tc+8 0ºC (Max.)
Operation range≤ 200 m
IP ratingIP20
CertificatesCE ROHS
Warranty2 years

Features Of Wi-Fi Switch Module With Energy Monitor

Protocol: WIFI.
Easy to install behind the existing switch, keep function of manual switches.
App control is synchronized with the manual switch.
Voice control compatible with Google home and Amazon Alex etc.
Schedule,group, scene, automation functions organizable with other smart home devices,easily achieve home automation.
Accept customer customization for logo, color box. etc.

Quality Standard Of Wi-Fi Switch Module With Energy Monitor

EMC Standard (EMC)

EN 300 328 V2.1.1 (2016-11),

EN 301489-1 V2.1.1 (2017-02),

EN 301489-17 V3.1.1 (2017-02),

EN 62311: 2008,

EN 61000-6-1:2007,

EN 61000-6-3:2007+A1:2011

Safety Standard (LVD)

IEC 60669-2-1:2002 / AMD1:2008 / AMD2:2015,

IEC 60669-1:1998 / AMD1:1999 / AMD2:2006,

EN 60669-2-1: 2004+A1: 2009+ A2: 2010,

EN 60669-1:2018

RoHS Standard (RoHS)

2011/65/EU, (EU) 2015/863

Radio Equipment (RED)

ETSI EN 300 328 V2.1.1 (2016-11)

Related Documents Of Wi-Fi Switch Module With Energy Monitor
