1 Gang Zigbee Dimmer Module

This 1 gang Zigbee dimmer module is designed to transform your traditional dimmer into smart dimmer. It works with Zigbee signals. ZigBee has the characteristics of close range, low complexity, self-organization, low power consumption, and high data rate.

Different Types Of 1 Gang Zigbee Dimmer Module

QS-Zigbee-D02-TRIAC-LN

  • 1CH WIFI Dimmer Module with Neutral

  • Voltage 220-240VAC

  • Max. load: 150W for LED

  • Dims (WxDxH): 46x46x18mm

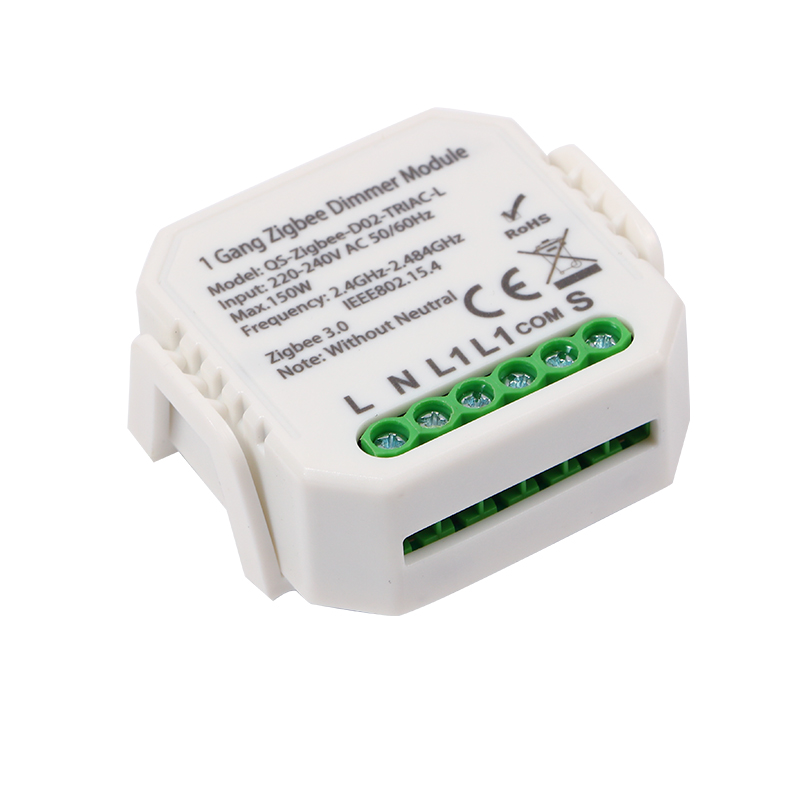

QS-Zigbee-D02-TRIAC-L

  • 1CH WIFI Dimmer Module without Neutral

  • Voltage 220-240VAC

  • Max. load: 150W for LED

  • Dims (WxDxH): 46x46x18mm

Parameters Of 1 Gang Zigbee Dimmer Module

ProtocolZigbee 3.0
Dimming typeTrailing Edge
Operation frequency2.4-2.484GHz IEEE 802.15.4
Operation temp.-10ºC - +40ºC
Case temp. Tc+80ºC (Max.)
Operation range≤ 200 m
IP ratingIP20
CertificatesCE ROHS
Warranty2 years


Features Of 1 Gang Zigbee Dimmer Module

Compatible with most Zigbee 3.0 gateway.
With/Without neutral wire.
Easy to install behind the existing dimmer switch, keep function of manual dimmer switches.
App control is synchronized with the manual dimmer switch.
Voice control compatible with Google home and Amazon Alex.
Mininum brightness is settable.
Schedule, group, scene, automation functions organizable with other smart home devices, easily achieve home automation.

Quality Standard Of 1 Gang Zigbee Dimmer Module

EMC Standard (EMC)

EN 61000-6-1:2007

EN 61000-6-3:2007+A1:2011

EN 301 489-1 V2.1.1

EN 301 489-17 V3.1.1

EN 300 328 V2.1.1

EN 62311:2008


Safety Standard (LVD)

IEC 60669-2-1:2002 / AMD1:2008 / AMD2:2015,

IEC 60669-1:1998 / AMD1:1999 / AMD2:2006,

EN 60669-2-1: 2004+A1: 2009+A2: 2010,

EN 60669-1:2018

Radio Equipment (RED)

ETSI EN 300 328 V2.1.1 (2016-11)

RoHS Standard (RoHS)

2011/65/EU, (EU) 2015/863

Contact Us
Enjoy your smart life by using our smart home products.
Make your life easy and comfortable!
