Zigbee Curtain Switch Module with RF

This 2 gangs Smart Curtain Switch Module is designed to realize most convenient and most powerful intelligent smart home device. It has all the functions of zigbee switch module and zigbee curtain module. Besides, it adopts 2 intelligent control methods as Zigbee and RF tech. Most normal switches on the market are compatible with it. By using this high tech smart module, all kinds of curtain, roller shutter, blind, home lighting, electric household appliances can be remote controlled by mobile phone APP, RF remote or Alexa/Google Home.

Different Types Of Zigbee Curtain Switch Module with RF

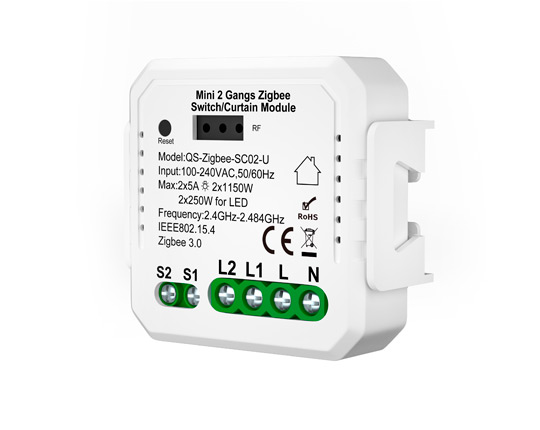

QS-Zigbee-SC02-U

  • Zigbee Curtain Switch Module with RF

  • Input Voltage 100-240V AC

  • Max Load 2x250W for LED/2x600W

  • Dims (WxDxH) 40x40x18 mm

Parameters Of Zigbee Curtain Switch Module with RF


Protocol

Zigbee 3.0 + RF

Operation frequency

2.4GHz - 2.4835GHz WIFI

Operation temp.

-10ºC - +40ºC

Case temp. Tc

+80ºC (Max.)

Operation range

≤ 200 m

IP rating

IP20

Certificates

CE ROHS

Warranty

2 years


Features Of Zigbee Curtain Switch Module with RF

2 gangs 2 in 1 curtain switch module.
Zigbee and RF wireless control.
Compatible with most Zigbee 3.0 gateway.
Suitable for normal switches and push button switch.
Easy to install behind the existing switch, keep function of manual switches.1
App control is synchronized with the manual switch.
Voice control compatible with Google home and Amazon Alex etc.
Schedule,group, scene, automation functions organizable with other smart home devices, easily achieve home automation.
Accept customer customization for logo, color box. etc.

Quality Standard Of Zigbee Curtain Switch Module with RF

EMC Standard (EMC)

ETSI EN 300 328 V2.2.2 (2019-07)

ETSI EN 301 489-1 V2.2.3 (2019-11)

ETSI EN 301 489-17 V3.2.4 (2020-09)

EN IEC 62311:2020

EN 62479:2010

EN IEC 55015:2019+A11:2020

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

EN 61547:2009

Safety Standard (LVD)

IEC 60669-2-1:2002/AMD1:2008/AMD2:2015,

IEC 60669-1:1998/AMD1:1999/AMD2:2006,

EN 60669-2-1:2004+A1: 2009+A2:2010,

EN 60669-1:2018

Radio Equipment (RED)

ETSI EN 300 328 V2.1.1 (2016-11)

RoHS Standard (RoHS)

2011/65/EU, (EU) 2015/863
