1 Gang Zigbee Switch Module

QS Zigbee S05 Ln is 1 gang Zigbee Switch Module with/without neutral wire, enable you to wireless control on/off and brightness of light by Mobile Phone, RF Remote Controller, Alexa and Google Home, as well as existing manual switch.


Different Types Of 1 Gang Zigbee Switch Module

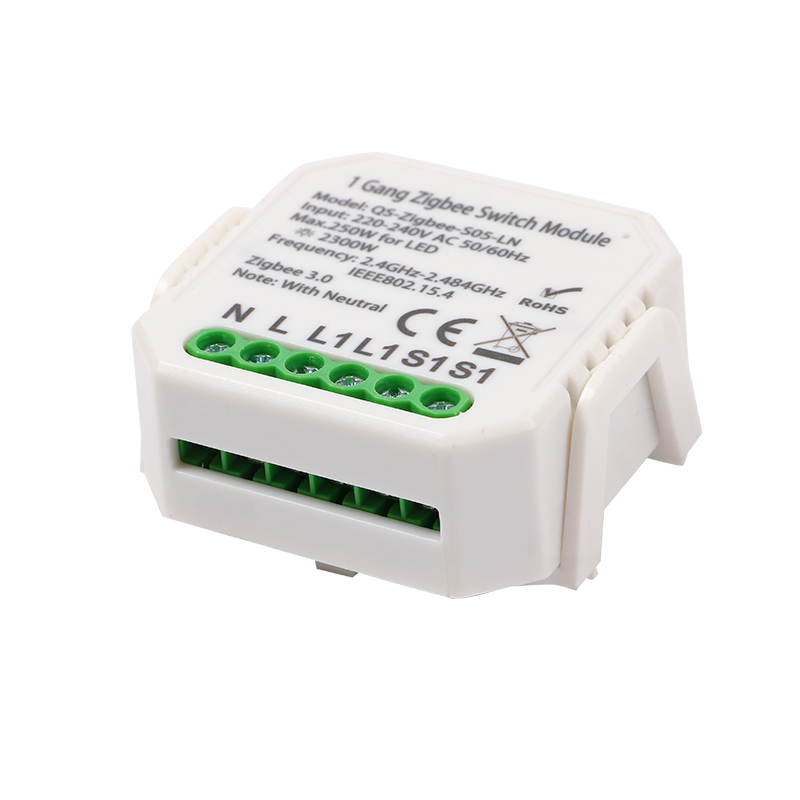

QS-Zigbee-S05-LN

  • 1 Gang Smart Zigbee Switch Module with neutral wire

  • Voltage 100-240V AC

  • Max. load: 2300W

  • Dims (WxDxH): 46x46x18mm

QS-Zigbee-S05-L

  • 1 Gang Smart Zigbee Switch Module with no neutral wire

  • Voltage 100-240V AC

  • Max. load: 100W for LED

  • Dims (WxDxH): 46x46x18mm

  • With reset key

Parameters Of 1 Gang Zigbee Switch Module

ProtocolZigbee 3.0
Operation frequency2.4-2.484GHz IEEE802.15.4
Operation temp.-10ºC - +40ºC
Case temp. Tc+80ºC (Max.)
Operation range≤ 200 m
IP ratingIP20
CertificatesCE ROHS
Warranty2 years


Features Of 1 Gang Zigbee Switch Module

Compatible with most Zigbee 3.0 gateway.
With/Without neutral wire.
Mininum brightness is settable.
Easy to install behind the existing switch, keep function of manual switches.
App control is synchronized with the manual switch.
Voice control compatible with Google home and Amazon Alex etc.
Schedule,group, scene, automation functions organizable with other smart home devices,easily achieve home automation.
Accept customer customization for logo, color box. etc.

Quality Standard of 1 Gang Zigbee Switch Module

EMC Standard (EMC)

EN 301 489-1 V2.1.1,

EN 301 489-17 V3.1.1,

EN 300 328 V2.1.1 (2016-11),

EN 61000-6-1:2007,

EN 61000-6-3:2007+A1:2011,

EN 62311:2008

EN 60669-2-1: 2004 +A1: 2009+ A12: 2010;

EN 60669-1: 2018; EN 62493: 2015


Safety Standard (LVD)

IEC 60669-2-1:2002 / AMD1:2008 / AMD2:2015,

IEC 60669-1:1998 / AMD1:1999 / AMD2:2006

Radio Equipment (RED)

2014/53/EU – Article 3.1(a), 3.1(b) & article 3.2

RoHS Standard (RoHS)

2011/65/EU, (EU) 2015/863
